The Oroville Dam 2017 Spillway Incident – Possible Causes and Solutions

by Telis Koskinas

On February 2017, Oroville Dam gained worldwide attention when its main spillway suddenly failed, seemingly without precedent, under natural operating conditions.

While thankfully no casualties were caused by this incident, its direct and indirect effects will be felt in the local downstream communities in the years to come. Furthermore, even though the state was prepared to respond to the emergency, the fact that this event occurred with no prior warnings poses several questions on how to properly operate and inspect aging structures such as this one, and possibly highlights a larger problem the United States has with maintaining its large infrastructure.

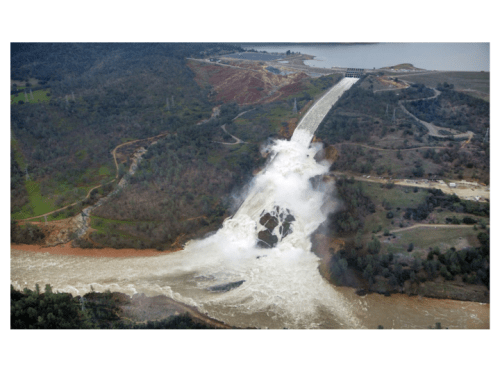

Figure 1. February 15th, 2017. An aerial view of Oroville Dam showing the damaged spillways. Source: Dale Kolke / California Department of Water Resources

In order to better understand how the events of the February incident unfolded, it is first necessary to conduct a detailed analysis of Oroville Dam and the basic elements of its location, the Feather River Basin.

The Oroville Dam is a 234.7 m (770 ft.) tall earth-fill dam. Built in 1968, it is the tallest dam in the United States of America and the fifth tallest earth-fill dam in the world. It is located on the foothills of the Sierra Nevada, on the Feather River, in Butte County, California. (California Department of Water Resources, 2017). Directly below the dam, on the banks of the Feather River where it flows into the base of the Sacramento Valley, lies Oroville, a city of approximately 20 000 residents.

An assessment of the hydroclimatic characteristics of the area (California Department of Water Resources, 2017) reveals it to have a Mediterranean climate, indicated by heavy precipitation during the winter months, producing floods during the spring, followed by almost completely dry summers. From a geological standpoint, the area near Oroville Dam contains metavolcanic rock, which is of adequate hardness, but it is also significantly weathered, especially near the ground surface.

Recent Floods in the Feather River Basin

Based on the available recorded history (US Army Corps of Engineers, 1970); (Lamontagne, et al., 2012), the most intense flood events to ever occur in the Feather River basin were in 1986 and 1997. These were the result of rainstorms caused by a phenomenon called the “Pineapple Express”, which is a type of atmospheric river, meaning a relatively narrow stream of enhanced water vapor. The main characteristics of this weather pattern are an intense, persistent flow of atmospheric moisture (US Geological Survey, 2010). Flood inflow peaks for 1986 and 1997 were 7,545 m3/s (264,500 cfs) and 7,766 m3/s (274,267 cfs) respectively (California Department of Water Resources, 1986); (California Department of Water Resources, 2017).

General Dam Configuration

Oroville Dam is a zoned earth-fill embankment structure with a maximum height of 235 m (770 ft.) above streambed excavation. The embankment itself has a volume of approximately 61 million m3 (80 million cubic yards) and is comprised of an inclined impervious core atop a concrete foundation, supplemented by zoned earth-fill sections on both sides.

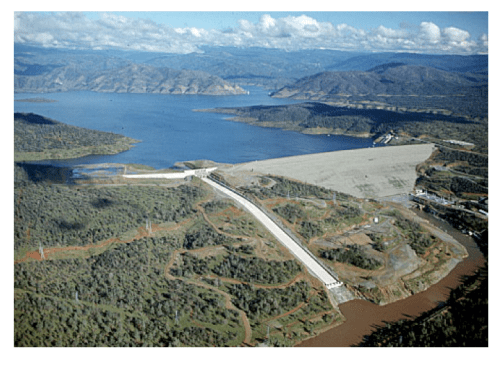

Figure 2. Aerial view of Oroville Dam. Source: California Department of Water Resources (2008).

Pertinent data related to Oroville Dam and related facilities can be found in Figure 3 below and in the Appendix in Table A-1. (California Deparment of Water Resources, 1974); (California Department of Water Resources, 2017). In the interest of brevity, only the main and emergency spillways are analyzed further in this article, as they are of critical importance. Detailed information for Oroville Dam’s other facilities can be found in (Koskinas, 2017) and any references therein.

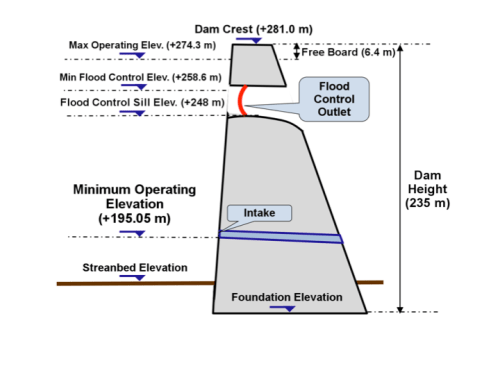

Figure 3. A typical section of Oroville Dam, with important elevation data. Not to scale. Adapted from (Efstratiadis, Michas, & Dermatas, 2017)

Spillway

Oroville Dam’s spillway, located on the right abutment of the main dam, is comprised of two independent elements: a gated flood control outlet and an uncontrolled emergency spillway. The former consists of an unlined approach channel, a gated headworks, and a lined chute approximately 930 m (3050 ft.) in length, extending down to the Feather River. The latter is an ungated concrete ogee weir with the crest set at elevation 274.62 m (901 ft.), just one foot above maximum storage level (elevation 274.32 m or 900 ft.). The area below the emergency spillway is not lined with concrete, meaning that when it is put to use, flow will spill over natural terrain.

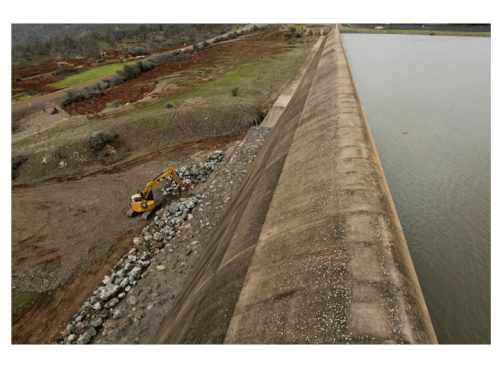

Figure 5. February 10th, 2017. Workers prepare the emergency spillway for use by placing large rocks at its foot. Source: Brian Baer, DWR.

The grout curtain of the dam’s main embankment continues under the emergency weir’s left reach, and drains are used under the downstream half. The crest of this weir on the right side rises only one foot (0.30 m) above the excavated channel, yet is keyed 2 feet (0.60 m) into the foundation (California Deparment of Water Resources, 1974).

The combined capacity of the main and emergency spillways is 17,472 m3/s (624,000 cfs), which corresponds to a peak inflow of 20,160 m3/s (720,000 cfs). The event that would cause this inflow is named the Probable Maximum Flood, or PMF (US Bureau of Reclamation, 1965); (California Deparment of Water Resources, 1974).

Important Construction Details and Inspection Reports

This section contains significant findings from a review of Oroville Dam’s design documents and subsequent inspection reports, which provide possible clues for the causes of the 2017 incident. For the sake of brevity, only the findings directly related to the dam’s main and emergency spillways are mentioned in this article.

First, the main spillway chute’s initial drain system plan ended up being significantly altered during construction. After a recommendation by the Oroville Dam Consulting Board, the original 100 mm (4-inch) diameter horizontal pipe drains under the chute were enlarged to a 150 mm (6-inch) diameter, placed in a herring-bone pattern. (California Deparment of Water Resources, 1974).

Next, Oroville Dam is inspected at least on an annual basis by the California Department of Water Resources Dam Safety Division, and every five years the Federal Energy Regulatory Commission (FERC) conducts an independent inspection. Unfortunately, the FERC inspection reports are heavily redacted, because they contain information classified as “Critical Energy/Electric Infrastructure Information” (Federal Energy Regulatory Commission, 2014). While this measure can be appreciated as an extreme precaution with the safety of the population in mind, in order to avoid possible terrorist attacks on critical engineering structures in the United States, the concept of withholding data from the public is wholly inconsistent with the basic foundations of science and engineering, which are based on peer review. At the very least, some explanatory data should be provided next to every redaction, to give clues as to what specific element is being redacted and why.

Regardless, the uncensored sections of the FERC reports, as well as the annual Division of Dam Safety reports confirm the following:

  • The California Department of Water Resources has been performing minor repairs to the main spillway chute as recently as 2009. Sources indicate that this is a routine maintenance practice that has occurred several times before. (Olenyn, 2017)
  • The last time the full length of the main spillway’s chute was inspected was in 2015. While an inspection was conducted in 2016, the chute was only inspected from the top of the outlet structure, the trunnion deck, and the road across the river channel. A reason for this is not specified. (Division of Safety of Dams, CA DWR, 2015); (Division of Safety of Dams, CA DWR, 2016)

The January 2017 Storm

During the first few days of January 2017, two precipitation events occurred just over Lake Oroville (California Department of Water Resources, 2017); (Koskinas, 2017). These storms quickly led into a large increase of inflows into Lake Oroville, shown below together with corresponding outflows, on an hourly scale.

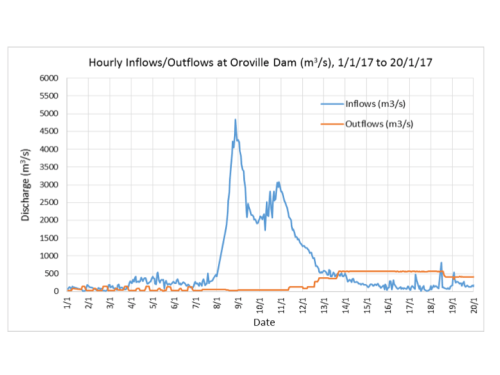

Figure 7. Hourly Inflows and Outflows at Oroville Dam in m3/s, from January 1, 2017 to January 20.

Two inflow peaks occurred according to the graph, the primary one was 4,839 m3/s (170,887 cfs) on January 8 at 21:00 PM, and a secondary peak of 3,079 m3/s (108,734 cfs), occurring on January 10 at 22:00 PM. These inflows are definitely significant, yet expected during a typical wet season. However, outflows from Lake Oroville at the same time were very low, almost zero. This resulted in a sharp water storage increase in Lake Oroville, as well as a significant rise in its surface elevation.

Lake Oroville’s surface elevation initially exceeded the flood control minimum on January 12, 2017 at 17:00 PM. Around that time, outflows from Oroville Dam’s main spillway were increased, to compensate for this fact and return the surface elevation to below the minimum. Overall, the Oroville Dam operator was able to return the surface level to below the flood control limit on February 3, 2017 at 17:00 PM, just in time for an upcoming February rain storm.

The February 2017 Storm

According to the CDEC database, a rain storm over the Feather Basin began on February 2, 2017, and ended around February 11. Inflow for the whole month of February 2017 is plotted in the graph below.

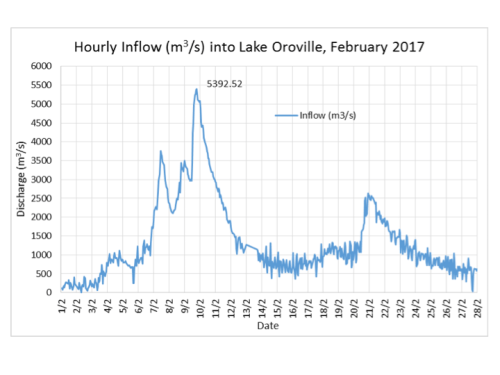

Figure 8. Hourly inflow into Lake Oroville in m3/s, for the month of February 2017.

Overall, the early February rain storms seem to have resulted in subsequent inflows with peaks occurring shortly after peaks in the corresponding upstream precipitation measurement stations. The largest measurement occurred on February 9 at 19:00 PM, and was 5,392 m3/s (190,435 cfs). This value is significantly lower than the highest recorded floods to ever occur in the Feather Basin, including the 1986 and 1997 floods. Under normal circumstances, Oroville Dam should have been able to deal with this event without trouble.

February 7: Main Spillway Failure

On February 6 at approximately 13:00 PM, outflows from Lake Oroville were raised in order to prepare for incoming inflows to 1,500 m3/s (54,000 cfs). However, the next day, February 7, at approximately 10:00 AM, workers at the Oroville Dam site noticed a discoloration in the water flowing through the main spillway. In order to detect the source of this phenomenon, outflows from the main spillway were immediately halted, revealing a large hole in the main spillway chute.

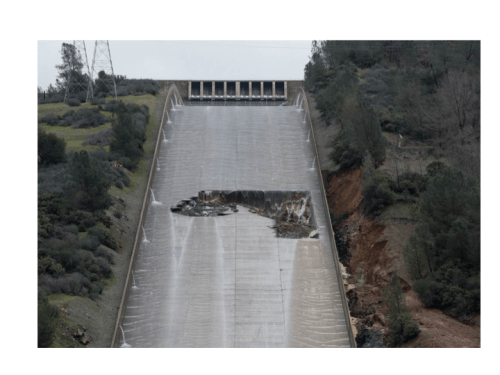

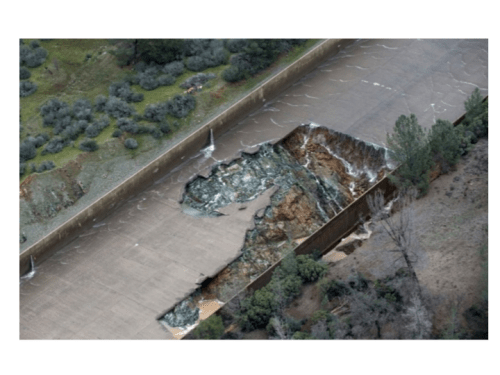

Figure 10. February 7th, 2017. Front view of the initial main spillway chute damage. Source: Kelly M. Grow, DWR.

At this point, the main spillway is already severely damaged, and any discharges at that point would rapidly amplify this erosion and move entire parts of the concrete chute and walls downstream. However, Lake Oroville’s surface elevation is already past the flood control minimum, and inflows from the February rain storm are imminent.

February 8-10: Testing the Main Spillway

After brief consultation with various dam safety agencies, the operators decided to release test flows into the main spillway and monitor the damage. These small flows ranged hourly from around 300 m3/s to 900 m3/s (10,000 to 30,000 cfs) over the course of February 8th. On the very next day, February 9, the hole in the main spillway had increased in size, seen below compared to the initial February 7 picture.

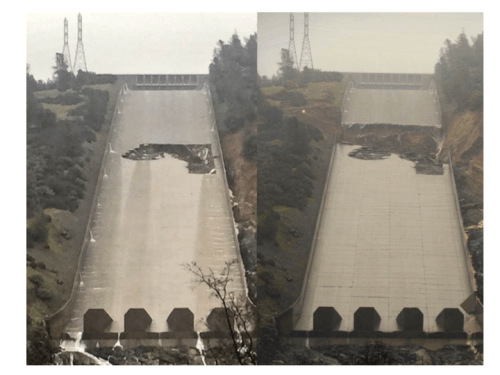

Figure 12. Comparison of the February 7 main spillway hole (left) to the damage on February 9 (right). The erosion appears to be moving uphill. Sources: Kelly M. Grow, DWR and the Metabunk.org forum.

At this point the Oroville Dam operators were facing a tough dilemma; either continue to release flows through the already damaged chute and cause further erosion, or risk using the untested auxiliary spillway. However, as the latter structure is ungated, if unchecked the dam itself would make that choice for them, as water would flow over the emergency spillway as soon as the surface elevation surpassed its crest, at 274.62 m (901 ft.). As such, a plan was formulated to continue letting small flows pass through the main spillway, while also preparing the area around the auxiliary spillway in case it would have to be put to use. To that end, workers began clearing the area downstream of this secondary structure, as well as placing large rocks at its foot to mitigate possible erosion (See Figure 5).

At this point, the inflows into Lake Oroville increased tremendously, reaching the aforementioned peak of 5,392 m3/s (190,435 cfs).

February 11-12: Water Flows over the Emergency Spillway

On February 11, at 8:00 AM, surface elevation at Lake Oroville surpassed that of the emergency spillway crest, meaning that for the first time in the dam’s history, water would pour over it.

According to data from CDEC (California Department of Water Resources, 2017), water poured over this ogee weir for just over 37 hours in total, as the surface level dropped below its crest elevation again on February 12 at 21:00 PM.

Unfortunately, erosion downstream developed much more rapidly than anticipated. While the emergency spillway was only active for a very brief duration, and peak discharge did not exceed 400 m3/s (15,000 cfs), large boils occurred downstream, destroying the access road below and threatening to damage the spillway crest itself by failure due to headcutting.

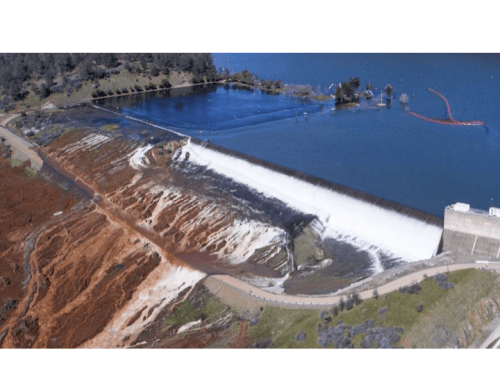

Figure 15. February 11, 2017. Image of the flooded parking lot and access road located next to the emergency spillway. Source: Metabunk.org

The exact extent of the damage was not clearly visible when water was still pouring over the downstream hill on February 12, however, and thus local authorities, fearing the worst outcome, were forced to spring into action and order the evacuation of Oroville and other areas downstream of the dam, including Yuba City and Marysville. More than 180,000 people in total live in this area, and thus this evacuation order made the Oroville Dam spillway incident headline news worldwide (BBC, 2017).

The California Department of Water Resources responded to the evacuation order by immediately increasing outflow releases from the main spillway to 2,830 m3/s (100,000 cfs). This would drastically lower the surface elevation and stop flows over the emergency spillway and any resulting erosions there, at the cost of causing irreparable damages to the main spillway.

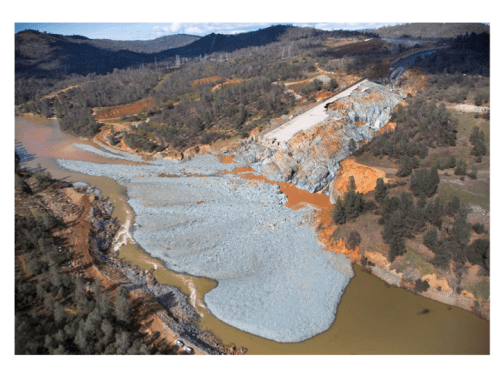

Figure 16. February 27th, 2017. Aerial view of the Oroville Dam main spillway. Large sections have eroded away and ended up in the Feather River as debris. Source: Dale Kolke, DWR.

Shortly after these events, a large scale effort began with the purpose of quickly clearing debris from around the spillway and working on repairing it. After a contractor was selected for the repair project, work on the main spillway chute began immediately. Estimated cost for the project is at around $500 million, and is almost complete as of November 30th (Schnoover, 2017); (Cooper, 2017).

Identifying Possible Causes of the Spillway Incident

When examining the causes of a real event such as the Oroville Dam spillway incident, lacking the ability to perform an on-site forensic investigation, it is tempting to simply look at photographs of damaged structures, and attempt to gather clues directly from them. However, this is less of a scientific approach and more that of a typical conspiracy theorist. To avoid jumping to unfounded conclusions, it is of the utmost importance to follow the steps of a proper scientific method: formulating a question, doing background research, testing with experiments (or models) and troubleshooting their results.

Based on the evidence already gathered, it is possible to make several hypotheses for the possible causes of failure for both spillways.

Emergency Spillway

It is much easier to determine the cause of the near failure of the emergency spillway due to the fact that it was actuated for a very brief duration under constant supervision, as authorities were already alerted of the situation. While water was pouring over the concrete weir without a problem, it was the surrounding conditions that posed a threat.

Already from the documents describing Oroville Dam’s construction, the following facts are known:

  • The emergency spillway was untested, even in the model studies conducted by the US Bureau of Reclamation. (US Bureau of Reclamation, 1965)
  • The area downstream of the emergency spillway was not cleared. (California Deparment of Water Resources, 1974)
  • Regarding the emergency spillway foundation excavation, it continued 3 m (10 feet) deeper than expected, in order to reach foundation rock that met the design criteria. (California Deparment of Water Resources, 1974)

While it is known that this concrete overpour weir was built on a solid foundation, no effort was made to secure that the downstream ridge would be able to accommodate flows passing over it without significant erosion occurring as a result. This could have been acceptable if this structure was truly used as an emergency measure (i.e. any outflows from it not being factored into hydrologic design calculations, using only the main structure’s design capacity instead), but this is not the case. In fact, under current design specifications (US Army Corps of Engineers, 1970); (California Deparment of Water Resources, 1974) it is expected to reach outflow discharges of around 10,000 m3/s (350,000 cfs). Seeing as erosion threatened to cause structural failure at less than 420 m3/s (15,000 cfs), the spillway’s ability to withstand PMF-level discharges is questionable.

Reservoir Surface Levels Prior to the Flood

When posing the question of why Oroville Dam was capable of withstanding the previous floods of 1986 and 1997, and not the 2017 event, one is prompted to also examine the surface elevation levels prior to each flood.

An attempt is made to compare Oroville Dam reservoir surface levels shortly before and after each of the three recent flood events, occurring in 1986, 1997, and 2017.

In the graph below, the y axis represents surface elevation in meters, whereas the x axis represents up to 240 hours (10 days) before and after peak inflow. Hour 0 is the hour during which peak inflow occurred for each event.

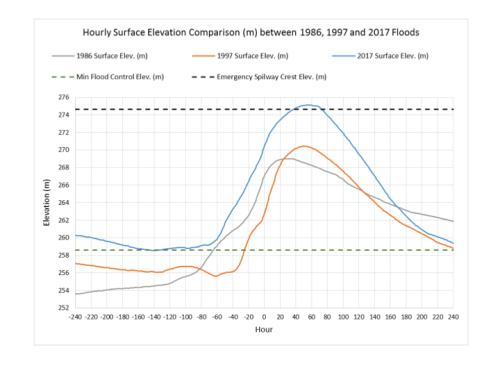

Figure 17. Hourly comparison of Oroville Dam reservoir surface elevations 10 days before and after the peak inflow of the 1986, 1997, and 2017 flood events.

Notably, while the 2017 peak inflow is the lowest of the three major flood events, its surface elevations are the highest. This is due to two factors. First, as is clear from the graph, shortly prior to peak inflow, surface elevation during 2017 was higher than that of previous floods. Already, this has a negative impact on flood management. While this elevation is below the minimum limit specified by the flood control manual (US Army Corps of Engineers, 1970), the 2017 flood is actually harder to manage than that previous events. This is partly why despite it not being a record flood, this event came close to causing severe damages to Oroville Dam’s key structures once the main spillway failed.

Main Spillway

Attempting to detect what caused the initial failure of the main spillway is a much more complicated task, as due to the nature of the incident, very few pictures are available showing the initial chute hole that was spotted on February 7th. Any physical evidence that could have been gathered from the scene at the time has been likely washed away from the subsequent discharges that eroded away the bottom half of the chute and much of the downstream ridge. As was mentioned earlier, simply looking at pictures of the February 7th chute damage is not enough, and can lead to forming unbased conclusions. Thus, further background research is required.

First, a simple mathematical model of the main spillway chute is constructed, using an iterative procedure to simulate 1-D steady flow for various discharge levels, known as the standard step method (US Army Corps of Engineers, 2016). An example is given below, with an additional data label at the exact point where the 2017 hole occurred. However, no surface flow irregularities are immediately apparent from this analysis, indicating that cavitation is probably not the initial cause of the of main spillway’s failure.

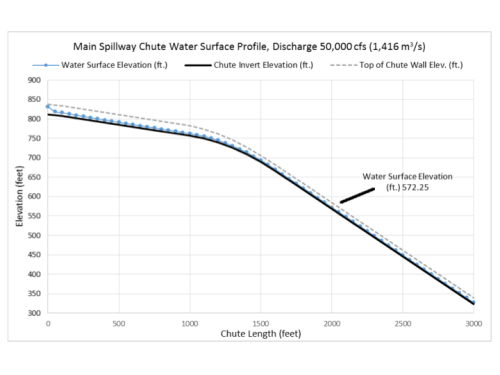

Figure 18. Oroville Dam main spillway chute water surface profile, discharge 1,416 m3/s (50,000 cfs)

On February 6th, shortly before the spillway failed, it was operating with a discharge of approximately 1,416 m3/s (50,000 cfs). Under these conditions, estimated velocity at the failure point is 23 m/s (77 fps), or 84 km/h. This explains the intense force of the water flow; once the initial hole was opened in the spillway, the stream was easily able to erode away large sections of the chute and the downstream ridge.

Next, a dam inspection guide (Morrison-Knudsen Engineers, Inc., 1986), lists potential incidents that can occur to spillway concrete chutes, and possible causes based on studies of previous similar events. After ruling out other possibilities, the following defect mentioned in the guide is identified as the most probable cause of the initial spillway chute hole:

“Lifted slab panels. Indicated by vertical offsets in joints, possibly caused by poor drainage under slabs, and/or inadequate anchoring of slab to foundation.”

Below is a comparison of two pictures of the main spillway chute, taken shortly before the February incident. The first was taken on January 11th, 2017 and the second on January 27th of the same year.

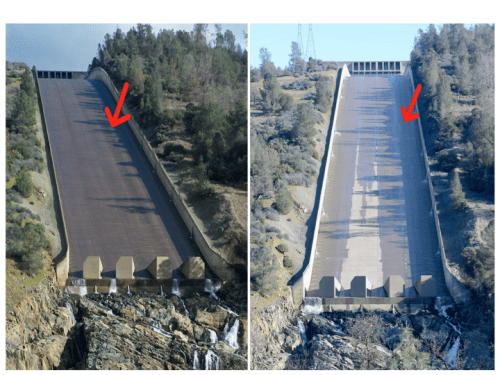

Image 38. Views of the Oroville Dam main spillway chute. Left photo taken January 11th, 2017, and right photo taken January 27th, 2017. A red arrow points to the location of the initial chute failure. Sources: Kelly M. Grow, DWR and Bill Husa, Chico Enterprise-Record.

While these pictures were only taken within 16 days of each other, there are significant differences in the spillway chute. A central section of the chute’s concrete floor appears dry on the right-hand picture, despite flows passing over the rest of the structure. This indicates possible irregularities among the floor slabs. Furthermore, the fact that this dry patch is not visible in the photo taken earlier, could possibly mean that a possible slab uplift occurred near the red arrow’s location, diverting small water flows around it instead of over it. In addition, below is a side by side comparison of the same pictures, but zoomed in to better show the drains on the chute’s left wall.

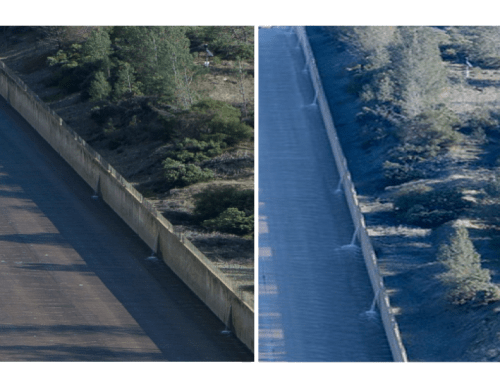

Figure 19. Side by side comparison of drains in the spillway chute’s left wall, left photo taken January 11, 2017 and right photo taken January 27, 2017. Sources: Kelly M. Grow, DWR and Bill Husa, Chico Enterprise-Record.

This comparison reveals two clues: Firstly, water is coming out of the drains under pressure, which is not according to design specifications, and secondly, discharge from these drains significantly increased in a short time, once flows from the January flood filled up the Oroville Dam reservoir. This is a telltale sign of a buildup of excess water occurring beneath the spillway, which could apply significant forces to the concrete slabs from below and cause them to uplift (Morrison-Knudsen Engineers, Inc., 1986). Additionally, the January 27 photograph shows the drains on the opposite wall operating under pressure as well.

Geological Conditions beneath the Main Spillway Chute

Based on data acquired through background research, the following information is available about the geological conditions beneath the main spillway chute:

  • Geology immediately in and around Lake Oroville is comprised mostly of what is called the “Bedrock Series”. This consists mostly of metavolcanic and pyroclastic rock, such as amphibolite. Above this bedrock lie various younger sedimentary rocks such as shales, dolomites, etc (Koczot, Jeton, McGurk, & Dettinger, 2005); (Jennings, Strand, & Rogers, 1977); (Freeze & Cherry, 1979).
  • Blasting was used for almost 90% of the chute foundation, in order to reach grade. The remaining amount consisted of the removal of several seams of clay located in the foundation, and a few areas where the slope failed (California Deparment of Water Resources, 1974).
  • The slopes in the flood control outlet section were of a lower quality rock than initially presumed, and several large seams ran parallel with the main spillway chute. The countermeasure that was applied was the replacement of planned anchor bars with grouted rock blots, pigtail anchors, and chain-link covering of the area’s surface (California Deparment of Water Resources, 1974).

The fact that the main spillway chute was built atop rock that required blasting to excavate would mean that it is suitably hard to serve as foundation for the concrete chute sections. However, pictures of the initial spillway failure reveal more information about this foundation rock.

Figure 20. February 7th, 2017. Side view of the initial spillway chute failure. Source: Kelly M. Grow, DWR.

Based on this photograph, it appears that the foundation rock is indeed comprised of the metavolcanic materials mentioned previously. However, this particular section of bedrock appears highly fractured and heterogeneous. There is a significant variance of color in the formations, indicating different degrees of weathering. Furthermore, due to the orientation of the seams, the rock is expected to erode away in large chunks, not in sheets. It is also possible that water was able to seep through cracks in the weaker, more weathered sections of rock and undermine the chute from below.

Revisiting the Probable Maximum Precipitation Methods

Until now, known flood control studies for Oroville Dam and the Feather Basin have attempted to determine the Probable Maximum Flood (PMF) for Lake Oroville, based on the Probable Maximum Precipitation (PMP). All dams which are considered high-risk structures like Oroville Dam must be designed to withstand the PMF (US Bureau of Reclamation, 1965); (US Army Corps of Engineers, 1970); (California Department of Water Resources, 2017).

However, the PMP-PMF analysis has several flaws. From a theoretical standpoint, the PMP suggests that there exists a theoretical upper limit of precipitation, which is simply not true (Koutsoyiannis, 1999). Nature is not bounded by numerical constraints, and the study of a brief history of available data cannot generate a true possible maximum value of precipitation.

Besides the semantics, the actual calculation procedure for the PMP and resulting PMF tends to make several unclear assumptions and generalizations.

The most recent existing study available detailing PMP calculations in California is Hydrometeorological Report No. 59 or HMR 59 (US Army Corps of Engineers, 1999). In brief, the computational procedure includes tracing an outline of the drainage basin, placing this outline on top of a given PMP 10-mi2, 24-hour index map, then determining depth duration relations and areal reduction factors, and finally conducting temporal distribution of incremental depths extracted from a given curve.

While this method is simple to use, and the analysis involved in creating these PMP index maps undoubtedly contains valuable information, it would better to instead adopt a probabilistic approach to precipitation analysis, where instead of assuming a deterministic, theoretical upper limit, studying existing precipitation data and extracting a return period for the already calculated 24-hour index depths, for every sub-area of the Feather River Basin, as determined by the California Department of Water Resources in (DWR, 2004).

In accordance with (Koutsoyiannis, 1999); (Papalexiou & Koutsoyiannis, 2006); (Papalexiou & Koutsoyiannis, 2013), the GEV distribution using the method of L-moments is fitted to annual daily maxima of precipitation data gathered from the Feather Basin (Menne, et al., 2015); (California Department of Water Resources, 2017). A map of analyzed stations, as well as a distribution fit example can be found in the Appendix (Table A-2; Figure A-1).

After consulting the 24-hour PMP index depth maps in (US Army Corps of Engineers, 1999), and comparing them to those specified in (DWR, 2004) for the subareas of the Feather River Basin, it is possible to use these distribution fits to estimate the annual daily maximum precipitation value with a 10,000 year recurrence interval, and find the return period of the stated probable maximum precipitation index depths. Below is a table summarizing the results of this analysis.

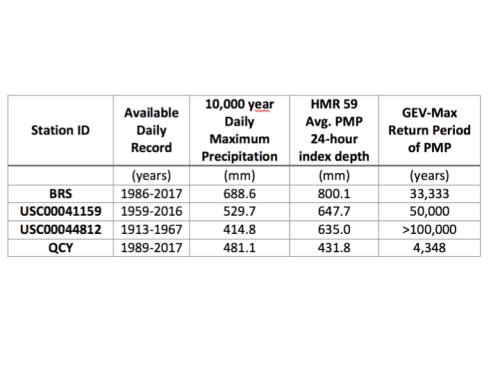

Table 2. 10,000-year recurrence interval annual daily maximum precipitation forecasts, compared to the 24-hour PMP index depths and their recurrence intervals, based on the GEV-Max distribution fit.

As is evident from the analysis, the PMP usually has a recurrence value that is abnormally high, which while increases safety, does tend to go beyond engineering design practices. Extreme care must also be taken to not assume that designing with the PMP method removes risk entirely simply because it generates large values. For instance, in the case of the Quincy (QCY) station, the PMP 24-hour index depth has a corresponding return period of 4,348 years, which is still very high, yet leads to the conclusion that the PMP method is not always as risk-free as some would expect.

Flood Frequency Analysis – An alternative to the PMF

The concept of the Probable Maximum Flood is also highly controversial, for much of the same reasons as the PMP. Even the PMF is the product of a probabilistic method, and designing with it in mind always will have a certain degree of risk, however small. It is difficult to generate a true design flood for Oroville Dam without taking multiple factors into account, but it is possible to assign a return period to existing design floods by using the already familiar flood frequency analysis method.

A record of unregulated, annual maximum flow data for the Feather River at Oroville station resulting from rainfall for a 1-day duration provided by (Lamontagne, et al., 2012) is an ideal input time series for this purpose, and further cross-examination with known extreme floods such as the 1964, 1986, and 1997 events confirms its accuracy. Two distributions are fitted to the data, namely the Log-Pearson III with the method of maximum likelihood estimators and the GEV distribution using the L-Moments method, according to (Interagency Advisory Committee on Water Data, 1982); (Seckin, Haktanir, & Yurtal, 2011); (Papalexiou, Koutsoyiannis, & Makropoulos, 2013). The distribution fits can be found in the Appendix (Figure A-3, Figure A-4).

From this analysis, it is possible to extract the 10,000 year floods for each of the distribution fits. For the Log-Pearson III fit, the 10,000 year flood is estimated to be 32,000 m3/s (1,129,000 cfs) and for the GEV fit, the same value is 24,464 m3/s (864,000 cfs). Furthermore, recurrence intervals can be assigned to existing calculated inflows such as the Standard Project Flood and various PMFs that can be found in (California Deparment of Water Resources, 1974); (US Army Corps of Engineers, 1970); (DWR, 2004).

Table 3. Return periods in years for various floods, as generated by the distribution fitting process.

The Standard Project Flood is mentioned to have a recurrence interval of 450 years (California Deparment of Water Resources, 1974), which is close to the average of the two distribution fitting results. However, the return period of the probable maximum flood is supposed to exceed 10,000 years, yet only the 1983 PMF achieved this for both distribution fits. Notably, the most current PMF was calculated in 2003 based on HMR 59 (Interagency Advisory Committee on Water Data, 1982); (California Department of Water Resources, 2017), and its recurrence interval does not exceed 5,000 years for both distributions. Furthermore, according to this analysis, the return period of the 2017 flood is only 20 years for the LP3 fit, and 33 years for the GEV fit.

Adjusting the Minimum Flood Control Elevation

One of the main reasons the February 2017 storm had such a devastating impact on Oroville Dam was the fact that reservoir surface elevations were higher than those of previous significant flood events. While levels were within the flood control manual standards (US Army Corps of Engineers, 1970), the fact that they were close to the limit made dealing with the February 2017 inflows a much more daunting task once the main spillway failed. Thus, it would seem reasonable to request a lowering of the minimum flood control elevation level for Lake Oroville.

However, this is not as simple as it sounds. It is not feasible to request an arbitrary minimum flood control elevation level because it is bound by physical constraints; namely, the flood control outlet sill elevation is at 248 m (813.6 ft.). While outflows can also be routed through the river valve outlet and Hyatt Powerplant tailrace channels, they can output only a fraction of the spillway’s discharges. Aside from that, Oroville Dam is not only designed to stop floods; it has a number of other uses that make its ability to store water paramount to the sustainability of the Feather Basin and its downstream areas. It would be a terrible mistake to request a significant lowering of the flood control elevation without first taking into account economic and ecological factors together with flood risk management. Furthermore, since Oroville Dam’s main spillway is being rebuilt, it makes sense to make as much use of this new structure as possible.

Conclusions and Moving Forward

The Oroville Dam 2017 spillway incident will be remembered in history for its uniqueness, as it is a failure of a dam’s key structure that occurred under standard operating conditions, yet at an unfortunate time. It makes for a very interesting problem from a dam operator’s perspective; what does one do when a spillway, a structure built to deal for emergency situations, fails just when it is needed? And in the specific case of Oroville Dam, is the auxiliary spillway a feature, or a mark of a critical flaw in its design? While it would indeed save the main dam from overtopping in the event of a probable maximum flood, in doing so it would likely not be able to hold for long, failing and releasing 10 m (30 ft.) of the reservoir’s water downstream, flooding an enormous area with more than 180,000 permanent residents. Furthermore, this aforementioned probable maximum flood seems more probable then presumed, and it’s definitely not a maximum.

An independent forensic team tasked with determining the causes of the spillway incident recently published a summary of their findings (Oroville Dam Spillway Incident Independent Forensic Team, 2017). With the ability to conduct an on-site investigation, they were able to confirm some of the causes mentioned in this study as well as outline new ones. Namely, the redesign of chute’s underdrain system apparently led to an inconsistent thickness in the concrete floor slabs, which resulted in cracks above the herringbone drains, allowing water to pass through the slabs and also potentially led to concrete spalling. Furthermore, the anchorage of the concrete to the foundation was in some places developed in weathered sections of rock, leading to a pullout strength lower than the intended design.

Based on the above analysis and after consulting dam inspection manuals (Morrison-Knudsen Engineers, Inc., 1986) and reviewing the on-site investigation report (Oroville Dam Spillway Incident Independent Forensic Team, 2017), the following conclusions are drawn:

  • From a structural standpoint, the main spillway chute appears to have initially failed due to uplift of its concrete floor slabs, caused somewhere between Stations +33 00 and +33 50 (2,000 and 2,050 feet of its rectangular section length, respectively). This uplift appears to have been caused by water accumulating below the chute floor, which was unable to be routed through the underdrains. This evidenced by photographs showing them operating under pressure, which should never occur under design specifications.
  • The rest of the damage to the main spillway was caused by high velocity flows due to the large amount of water that had to be routed through it to avoid erosion downstream of the emergency spillway.
  • The fact that Lake Oroville’s surface elevation was at the minimum flood control level, above that during previous major flood events, resulted in more severe conditions, even though the February 2017 inflows were not record-high. Thus, a lowering of the minimum flood control level to 255 m (837 ft.) is recommended. (Friends of the River; Sierra Club; South Yuba River Citizens League, 2006) reveal that this actually would not be a new requirement, but an adaptation to outdated assumptions made in the 1970 flood control manual (US Army Corps of Engineers, 1970). Based on the main spillway rating curve (US Bureau of Reclamation, 1965), it would be feasible to maintain the dam reservoir at this level during wet seasons.
  • The current PMF for Lake Oroville has a return period of less than 10,000 years based on the above analysis. It is recommended to either calculate a new 10,000 year flood for Lake Oroville using a probabilistic method, or use the 1983 PMF which is suitably large. However, the state must assign a recurrence interval to any resulting flood, as the term “probable maximum flood” is outdated (Koutsoyiannis, 1999).
  • The California Department of Water Resources’ quick response to the incident and initiation of a full scale repair and reconstruction of the Oroville Dam spillways is greatly appreciated. However, under current design, the dam is only capable of withstanding the Standard Project Flood with a return period of 500 years without sustaining significant damage. The emergency spillway should be immediately redesigned to be fully armored with concrete in order to withstand a flood with a recurrence interval of 10,000 years without causing significant erosions to the downstream areas. This has been repeatedly requested by local interest groups (Friends of the River; Sierra Club; South Yuba River Citizens League, 2006) (Schnoover, 2017).

In the United States, many are using this incident as a textbook example of severe issues the country has with maintaining the gigantic number of high-risk structures it has built over the past century (BBC, 2017); (Stork, et al., 2017). Indeed, Oroville Dam itself has reached the halfway point of its expected life as a structure. Until a major problem occurs at a critical facility like this one, it is easy to get complacent and avoid or postpone critical maintenance procedures like routine inspections and small repairs. And even when larger problems or design flaws are pointed out (Friends of the River; Sierra Club; South Yuba River Citizens League, 2006), it is difficult to convince the authorities to fund large-scale repair projects. However, one would argue that such repair projects actually conserve money in the long run. The new Oroville Dam spillway is estimated to cost around $500 million (Rogers, 2017) which is significantly more than what would have been required for a full concrete armoring of the emergency spillway back in 2006. And this is without taking into account the lives and properties of the downstream community, who deserve to live in safety.

After the incident, the California Department of Water Resources seems to have taken a different stand on the issue, being more open to suggestions about the construction of the new spillways (California Department of Water Resources, 2017). Still, this response has comes at a rather late time, and is being met with some criticism (Schnoover, 2017); (Stork, et al., 2017). However, their stance on providing free access data to the public, and attempting to communicate and cooperate with local residents and interest groups is, while not exemplary, definitely a step in the right direction.

If there is a lesson that must be learned from this incident, it is that even when a critical, yet aging structure like Oroville Dam seems to operate up to standard, one small flaw can emerge at any time and result in a severe failure due to the sheer scale of the facilities and the conditions they are expected to consistently work under. While routine official inspections by the dam operators and independent authorities are a necessity, they are simply not enough as time goes by. Informal inspections of all related facilities must be conducted by dam operators on a weekly or bi-weekly basis, in accordance with existing guidelines (Morrison-Knudsen Engineers, Inc., 1986), not with the intent of writing official reports, but simply to detect the telltale signs of imminent failure before the theoretical worst outcome becomes a reality. If the dam operators had noticed the differences in the main spillway chute’s floor slabs between mid and late January they might have been able to repair it in time and avoid the incident from occurring entirely, or at least mitigate its results.

On-site physical inspections aren’t the only available method for detecting faults, however; using currently available technology, it is possible to install monitoring systems using high-definition cameras and aerial drones. These could be controlled remotely from a control room, providing easy visual access to critical dam facilities.

Furthermore, this incident shows a possible lack of regulatory requirements based around the prevention of failures that could occur during normal operating conditions such what happened at Oroville Dam. These incidents are important as well, as even though no lives were lost as a result of the incident, its consequences on the local environment, economy, and communities will be felt in the years to come.

In the end, while it takes a great amount of knowledge, research, and responsibility to build a large dam, it takes much more to consistently operate one and protect it from damage. It is a thankless task, as when maintenance is done right, nothing happens. Yet someone has to do it.

Acknowledgements

This article is based on my diploma thesis The Oroville Dam 2017 Spillway Incident – Possible Causes and Solutions, School of Civil Engineering, National Technical University of Athens, Greece. I would like to thank Prof. Demetris Koutsoyiannis for supervising my diploma thesis and for his constant willingness to assist me whenever I had any questions. I must also express my gratitude to ITIA research team members Panayiotis Dimitriadis and Theano (Any) Iliopoulou for providing critical advice related to flood frequency analysis methods, and to Prof. Panos Papanicolaou for his assistance with the spillway chute water surface profile model. Finally, I must also thank David Hagen for his excellent article Will the Oroville Dam survive the ARkStorm?, which provided crucial information for this study, as well as Judith Curry for hosting it on Climate Etc., and for expressing her own interest in my thesis.

References [References]

Appendix [Appendix]
