By Javier Vinós
In 2007, two Canadian scientists studying the effects of this cycle on the Pacific coast of North America successfully predicted the occurrence of a major El Niño event in 2015 based on lunar data. Remarkably, their prediction proved accurate.
The Earth’s oceans contain a vast mass of cold water beneath a thin layer of warm water, and the limited amount of mixing between them plays a crucial role in our existence. Tides, primarily influenced by changes in the moon’s orbit, are the main force behind this mixing, which has the potential to cool the climate. Keeling, who pioneered CO2 measurements, believed in this theory and predicted a cooling trend for the next decade. The impact of the 18.6-year lunar cycle on climate has been known for some time, but more recent research has revealed its influence on the El Niño Southern Oscillation (ENSO).
The potential uniqueness of the Earth-Moon system
When astrophysicists discuss the abundance of potentially habitable planets around Sun-like stars, they often overlook a crucial fact: Earth’s formation was probably an incredibly rare event. About 4.5 billion years ago, our planet was born from a chance collision between early Earth and a Mars-sized planet. This serendipitous event explains two extraordinary features of Earth that may be exceptionally rare among other Earth-like planets. The first remarkable feature is Earth’s large metallic core, which generates a strong magnetic field despite the planet’s size. This magnetic field plays an important role in protecting our atmosphere from the solar wind, preventing the loss of light gases. The second unusual aspect of Earth is that it has an unusually large satellite for its size. Normally, the mass ratio between a planet and its satellite is about 1:10,000. However, the Earth-Moon system has a mass ratio of only 1:81, so close that it is sometimes referred to as a double planet.
The presence of such a large satellite exerts a powerful influence on Earth. It may have been essential to the presence and maintenance of complex life over time. The gravitational pull of the Moon stabilizes the tilt of the Earth’s axis. If a small change in the tilt of as little as 2.4° leads to a glaciation, Earth’s climate may have been too unstable for complex life to evolve under much larger tilt changes without the Moon.
The main effect of the Moon on the Earth is thus mediated by gravity, one of the most powerful forces in the universe, which has the capacity to significantly affect climate through the tides it produces in the ocean, atmosphere, and crust.
Tides’ effect on climate
The Moon’s orbit is tilted by 5° relative to the Earth’s orbital plane, also known as the ecliptic. The points where the Moon’s orbit intersects the ecliptic are called nodes. Eclipses occur only when the Moon is near a node and the line connecting the two nodes is aligned with the Sun. This alignment occurs approximately every six months, creating an eclipse season.
However, the Moon’s orbital plane around the Earth undergoes a gradual precession that causes one of the nodes to complete a full rotation relative to one of the equinoxes over a span of 18.61 years. This phenomenon is called the lunar nodal cycle. As a result of this precession, the 5° tilt of the Moon’s orbit is either added to or subtracted from the Earth’s axial tilt, resulting in a change in the Moon’s declination (its position relative to the equator). This declination varies from a maximum of 28.5° during a major lunar standstill to a minimum of 18.5° during a minor lunar standstill, completing a full cycle over the course of 18.61 years. These changes affect tidal patterns.
Tides are a complex phenomenon. As a result of the Moon orbiting the Earth in the same direction as the Earth’s axial rotation, it takes 24.84 hours for the Moon to be over the same position, so there is a semidiurnal tide every 12.42 hours. But this is only one of the many constituents of the tides, and it is called M2 (M for Moon and 2 for being semidiurnal). The next constituent in strength is due to the lunar-solar declination. It is diurnal with a period of 23.93 hours, and it is called the K1 constituent
Since the strength of this diurnal tidal constituent is directly related to the declination of the Moon over the Earth’s equator, we observe an 18.6-year cycle in the strength of the lunisolar diurnal tide. The semi-diurnal tides are also affected but to a lesser extent. For example, the amplitudes of the largest diurnal and semi-diurnal tidal constituents, K1 and M2, vary by 13% and 5%, respectively, over an 18.6-year cycle.
The lunar nodal cycle influences surface ocean temperatures through vertical mixing, which is influenced by increased or decreased tidal currents depending on the phase of the cycle. Numerous studies analyzing oceanic and atmospheric time series have identified an 18.6-year cycle in sea surface temperature and sea level pressure at various locations in the Pacific and other regions. There is a large body of literature on this topic.
In the Pacific, two notable low-frequency oscillations affect sea surface temperature and sea level pressure. The first and most widely known is the Pacific Decadal Oscillation (PDO). However, there is also a shorter-period low-frequency oscillation known as the North Pacific Bidecadal Oscillation. This oscillation was first discovered in Alaska in 1998. A year later, in 1999, Shoshiro Minobe established a correlation between the PDO and the Bidecadal Oscillation, showing that both oscillations occur in synchrony.[1]
Figure 1a shows the North Pacific Index (NPI) during winter (December to February). The NPI serves as an indicator of sea level pressure changes in the Aleutian Low, a large region in the North Pacific. It has a strong correlation with the Pacific Decadal Oscillation (PDO). When the PDO is reflecting colder temperatures, the NPI is showing higher pressure patterns and the other way around. The graph contains two data sets with Gaussian smoothing. The thick solid line emphasizes the long-term, multi-decadal variation, while the thick dashed line represents the shorter-term, bidecadal variation.
Figure 1. Multidecadal oscillations of the North Pacific Index. (a) Winter NPI data and two Gaussian smoothing. (b) Wavelet analysis.
Figure 1b from Minobe 1999 shows a wavelet analysis of the data. The graph illustrates time on one axis and frequency on another, while the third dimension is represented by the color scale indicating the pressure anomaly measured in hPa. This analysis allows us to identify two prominent oscillations: one occurring every 60 years and another every 20 years. In particular, significant climate shifts that cause sudden changes in the climate and ecology of the Pacific, such as the one in 1976 that triggered global warming, coincide with a simultaneous phase change in both oscillations.
Dave Keeling’s little-known tidal research
The ocean plays a critical role in moderating surface temperature variations on our planet. This fact is evident when comparing the greater seasonal temperature variations observed in continental climates compared to oceanic climates. Our existence depends on the lack of significant mixing between a thin layer of warm water, only a few hundred meters thick, on top of an icy cold ocean with an average temperature below 4°C. Even a small increase in vertical mixing could be catastrophic. It is clear, then, that vertical mixing in the ocean has the potential to be a climatic factor. The only two forces that can influence this vertical mixing are the wind and the Moon, as they contribute the necessary mechanical energy to the ocean. The Moon contributes about 4 TW (terawatts) of energy, while the wind contributes about 2 TW.
Charles David Keeling (1928-2005) was an outstanding scientist. In the late 1950s, he established a meticulous system for accurately measuring the background concentration of CO2 in the atmosphere. Keeling’s dedication quickly led to the discovery that these concentrations were steadily increasing. Despite several attempts to shut down the Mauna Loa station due to budget cuts, he single-handedly ensured its continued operation. Many considered this ongoing effort costly and routine, but Keeling’s persistence prevailed. In recognition of his remarkable scientific achievements, he was awarded the 2002 National Medal of Science, the highest lifetime honor for scientific achievement in the United States. The atmospheric CO2 record at Mauna Loa, known as the “Keeling Curve,” was designated a National Historic Chemical Landmark in 2015.
It is not widely known that Dave Keeling, in his later years of research, focused on the Moon as a means of understanding climate variability on Earth. While he firmly believed that CO2 increases were the cause of global warming, he sought to identify additional factors that could account for previous cooling periods that could not be explained by CO2 changes. Keeling theorized that changes in the Moon’s effect on ocean mixing could affect surface temperatures – a simple and scientifically sound mechanism. The only question is the magnitude of the effect of these changes.
Figure 2 is taken from a 1997 article by Keeling.[2] The strongest tides occur under certain circumstances: (1) during a Sun-Earth-Moon syzygy or alignment, (2) when the Moon is at its closest point to the Earth (perigee), (3) when the Moon is at one of the nodes of the Earth’s ecliptic, and (4) when the Earth is closest to the Sun (perihelion). On average, these conditions coincide about every 1800 years (1682, 1823, or 2045 years ± 18 years). However, harmonics and shorter periodicities occur when only a subset of these conditions are met.
The figure illustrates a 93-year cyclic pattern in tidal amplitude resulting from the succession of five nodal cycles. It’s important to note that tidal forcing does not increase continuously over decades. Rather, it increases on some days during a few lunar months when alignments occur, as indicated by the vertical lines in the figure. After that, the tidal forces may average out in the following years, only to regain strength 18 years later. The arcs connecting the peaks in tidal force are provided only as a visual aid to show the recurring pattern separated by an 18-year interval.
Figure 2. Timing of lunisolar tidal forcing since 1600 AD. Each event, indicated by a vertical line, gives a measure of the forcing in terms of the angular velocity of the Moon, in degrees of arc per day. The gray bars correspond to cool climate episodes.
This figure was reproduced in my book when I explained how tidal forcing is a likely candidate for triggering the Dansgaard-Oeschger events during glacial periods.[3]
Keeling and co-author Timothy Whorf made an interesting observation about the alignment of significant increases in tidal forcing over the last 400 years. They noticed a correlation between these periods and the cool periods documented in a separate publication by Phil Jones, the former director of the Hadley Climate Research Unit (HadCRU). These cool periods are represented by the gray bars at the top of Figure 2.
While it may be unreasonable to claim that the cooling climate of these periods was caused solely by the increase in tidal forcing, it is plausible to consider that tidal forcing played a role in enhancing the cooling effect beyond what would have occurred in its absence. They projected another peak in tidal forcing in the coming 2030s (labeled “D” in the figure). This should coincide with my projection of a temperature drop due to the coincidence of low solar activity and the transition of the Atlantic Multidecadal Oscillation into its cold phase. Nature has yet to show its true strength to overconfident climate modelers.
The Moon as an El Niño predictor
In 2007, two Canadian scientists, McKinnell and Crawford, conducted a study examining the relationship between the lunar nodal cycle and various factors such as air temperatures, sea surface temperatures, and 400-year tree ring records along the Pacific coast of North America.[4] One notable finding they made was the correlation between winter sea surface temperatures measured at Scripps Pier in San Diego, California, and the tidal constituent K1, which influences diurnal tidal amplitude. Figure 3 shows this relationship.
Figure 3. Mean January sea surface temperature anomalies at Scripps Pier superimposed on the diurnal lunar nodal cycle. Red circles, marking some El Niño years, have been added to the original figure.
Remarkably, the strongest positive January temperature anomalies at Scripps Pier consistently coincided with a lunar nodal cycle minimum. On the other hand, the lowest anomalies were often, though not always, observed within a year or two of a nodal cycle maximum.
McKinnell and Crawford also observed a remarkable synchronization between the lunar nodal cycle and some of the largest El Niño events of the 20th century, such as those in 1940/41, 1957/58, and 1997/98. Attributing the cause of El Niño solely to the Moon would be inaccurate, as there are instances (e.g., 1972/73, 1982/83) when El Niño events do not align with the nodal cycle.
Nevertheless, the relationship between the 18.6-year lunar cycle and El Niño had already been described in a 2001 article and has been further emphasized in recent studies.[5] [6] The explanation presented in the 2001 article suggests that tidal forces acting on the Pacific gyre modify the transport of cold water into the equatorial region, thereby influencing the likelihood and magnitude of El Niño events.
Even in the absence of a major El Niño event, the Scripps Pier data presented in Figure 3 show the presence of consecutive Niño episodes during lunar nodal cycle minimums. These are the Niño events of 1940/41 and 1941/42, 1957/58 and 1958/59, and 1976/77 and 1977/78.
Based on the available data, the authors suggest that the coincidence between the North American coastal sea surface temperature response to the lunar nodal cycle and El Niño events deserves greater attention, particularly if a strong El Niño occurs around 2015.
Given the challenges associated with predicting the occurrence of an El Niño event, let alone its magnitude, it is truly remarkable that the authors were able to successfully predict a major El Niño eight years in advance. Even more amazing is the fact that this prediction was based on the 18.6-year lunar cycle. It is recommended that anyone involved in ENSO forecasting take into account the accumulated knowledge of the Moon’s influence on ENSO. While not a hard and fast rule, it is apparent that the likelihood of a major El Niño event, or even successive Niño episodes, is higher for 2034. Such an event could potentially mitigate the expected cooling trend.
[1] Minobe, S., 1999. Geophys. Res. Lett. 26 (7), pp.855–858. doi.org/10.1029/1999GL900119
[2] Keeling, C.D. & Whorf, T.P., 1997. PNAS, 94 (16), pp.8321–8328. doi.org/10.1073/pnas.94.16.8321
[3] Vinós, J., 2022. Climate of the Past, Present and Future: A scientific debate. 2nd ed. Critical Science Press.www.amazon.com/dp/B0BCF5BLQ5 Also in French www.amazon.fr/dp/B0BRJ94Z2H/
[4] McKinnell, S.M. & Crawford, W.R., 2007. J. Geophys. Res. Oceans, 112 (C2). doi.org/10.1029/2006JC003671
[5] Cerveny, R.S. & Shaffer, J.A., 2001. Geophys. Res. Lett. 28 (1), pp.25–28. doi.org/10.1029/2000GL012117
[6] Yasuda, I., 2018. Sci. Rep. 8 (1), p.15206. doi.org/10.1038/s41598-018-33526-4
Javier,
Your post is spot on brilliant !
The moon clearly must affect the climate.
Thank you, Clive. I am glad you like it.
Yes the Moon ‘does’ Clive, but this is only ‘part’ of the overall ‘climate debate’. IMHO the interface between Earth’s surface and atmospheric ‘machinations’ should be more integrated for better a understanding of how Earth’s climate ‘may/may not’ alter.
Full marks to Judith for her description of the conjoining between Thea and our Proto Earth, but that was estimated as 4.5 BYA and our ‘climate’ is ‘now’ (though historical introduction is helpfull)!
Judith,
Could you ‘please’ elucidate ‘surface interactions’ with our/Earth’s ‘atmosphere’ with at ‘least’ a description of how ‘climate cells’ work to produce ‘jet streams’ between the Hadley Cells and the Polar Cells which evolve ‘clouds’ at the altitudes which Earth actually ‘radiates’ energy/heat away from the Earth?
Hint. Earth ‘radiates thermal energy to space’ at an altitude of ~1 to ~2 kilometres of altitude above sea level, so ‘how’ could CO2 values at/near the surface alter this? ‘Cloud’ and ‘evapourative cooling’ from ‘rainfall’ to the ‘surface’ ‘is/would mostly’ seem to be ‘the answer’ to any ‘alteration’ to ‘climate’, or am I mistaken?
The pressence and propensity of ‘atmospheric water’ (as vapour) within Earth’s Climate Cells alters the planets ‘thermal atribute’ by way of the ‘evapouritive cooling effect’ to the/our planet’s ‘surface’ and its warming affect within the atmosphere.
Kind regards, Ray Dart (AKA suricat).
Of course the moon today has a minor effect on climate. However we have to thank the moon for stabilising the earth’s tilt and allowing life to develop. The moon is the remnants of a collision between a “proto-planet” Thea and the Earth.
I perfectly understand the greenhouse effect thank you.
https://clivebest.com/blog/?p=4597
It is important realise that tides are essentially a HORIZONTAL movement of water. Though we conveniently measure it terms of height bulk mass displacement is sideways.
I proposed in a WUWT discussion about 10y ago that tides may be the mysterious trigger for El Nino. Someone poo-pooed the idea, then came back later, said he had run a simplistic computer model and found that there was enough energy in the displaced water for that to be possible.
What we see above is that the various lunar components cause a change in the amplitude of the tides ie higher AND lower tides at the same time.
In the horizontal analysis this means more horizontal mixing , not more vertical mixing. ie more horizontal mixing into and out of the tropics.
When I started basin-by-basin spectral analysis of SST, I found solar an lunar periods. Everyone is still looking a one variable answer to climate be it AGW , “it’s the sun stupid” stupidity or it’s the tide !
My first blog post was subtitles: On Zen and the Art of Climate Analysis.
Strong 9.1y lunar plus a strong circa 13y, I was not able to identify.
https://climategrog.wordpress.com/2013/03/01/61/
BTW if you modulate 9.1 with 10.8 you get a beat frequency of about 60y ;)
Moreover, the rate of which ‘rainfall’ atains Earth’s surface to be realised by the ‘pan accumilation’ that Ferenc Miscolciscy (please excuse any miscelling) based upon his theorom upon/of a ‘static radiative theorom’
“Virgil Rain” ‘profounds’ the ‘radiative assumption’ by way of the inabillity to accurately/inabillaty to asses the ‘differentialation’ between ‘radiative’ and ‘convective’ ‘energy transport’!
Kind regards, Ray Dart (aka suricat).
you meant affect the weather. on climate scales it affects nothing
The ENSO Outlook remains at El Niño Alert. When El Niño Alert criteria have been met in the past, an El Niño event has developed around 70% of the time.
Central and eastern Pacific sea surface temperatures (SSTs) are exceeding El Niño thresholds. Models indicate further warming is likely, with SSTs remaining above El Niño thresholds until at least the end of the year. The past month has seen the Southern Oscillation Index (SOI) shift back to neutral levels, with the 30-day SOI at +3.9 for the 30 days ending 16 July. The 90-day SOI is outside El Niño thresholds at -5.2. Sustained changes in wind, cloud and broad-scale pressure patterns towards El Niño-like patterns have not yet been observed. This means the Pacific Ocean and atmosphere have yet to become fully coupled, as occurs during El Niño events. El Niño typically suppresses winter–spring rainfall in eastern Australia.
http://www.bom.gov.au/climate/enso/
“The Bureau reluctance to declare El Niño stems from the atmosphere refusing to respond to the abnormally warm waters sitting at the surface of the central and eastern tropical Pacific Ocean. This ‘coupling’ of the tropical Pacific Ocean and the overlying atmosphere are a critical part of El Niño and its associated impacts.”
https://www.weatherzone.com.au/news/bom-retains-el-nino-alert-defying-wmo/1394539
At present, it seems that the impact of solar activity and the Moon are in a divergent phase. Changes in the atmospheric circulation will occur after the peak of solar activity, which is currently taking place.
successfully predicted the occurrence of a major El Niño event in 2015 based on lunar data. Remarkably, their prediction correlated, not the same as proved accurate.
This was written:
The ENSO Outlook remains at El Niño Alert. When El Niño Alert criteria have been met in the past, an El Niño event has developed around 70% of the time.
Only 70% proves there are other factors.
Such a great design by the Creator!
I suspect there was a direct tidal influence on the Arctic Oscillation.
https://clivebest.com/blog/wp-content/uploads/2015/09/Figure2.png
However the connection of ENSO with the 18.6 year cycle looks more provable.
Hi Clive , does that graph belong to a post. I’d like to see what you are showing and what “tractional tides” are about. I’ve long had a bug about horizontal heat transport by tides.
I assume that the Canadian prediction you are referring to is Reference 4. Unfortunately, the link does not work.
Just copy and paste the doi.org/ part into your browser. It should work.
Yes, it works, thanks.
Javier
Another nice post. There are quite a number of sea level rise studies acknowledging the 18.6 years and 60 years oscillations. The 60 years cycle seems to show up in the NOAA tidal gauge graphs, as well.
As indeed they should. Tide tables are based on long-term observations that led to the astronomical components being identified as a series of sinusoidals that re-construct the tides, sans the effects of winds and low-pressure cells.
Thank you Javier! Very clearly presented, providing me with unequivocal evidence for why I should give the lunar tidal cycle more attention!
Javier:
The “prediction” of the 2015-16 El Nino by the 2 Canadian scientists is laughable. I am amazed that you believed them.
First, ALL El Ninos are caused by decreases in the amount of SO2 aerosols in the atmosphere, which increases the intensity of the sun’s radiation striking the Earth’s surface, causing enough warming to produce an El Nino..
The 2015-16 El Nino was caused by a 2014 Chinese edict to reduce industrial SO2 aerosol emissions. Between 2014 and 2016, their emissions fell by 29 million tons, and global temperatures spiked because of the cleaner, more transparent air.
A comparison of 2014 and 2016 SO2 satellite images clearly show the decrease in SO2 aerosol levels.
(The 2023 El Nino which is now forming, is also due to reduced SO2 aerosol levels)
“The 2015-16 El Nino was caused by a 2014 Chinese edict”
That’s very funny, but allow me to excercise my innate and acquired skepticisms.
Javier:
Funny? You missed the whole point.
Decreased SO2 aerosol emissions, for whatever reason, are ALWAYS associated with an El Nino.
There have been 35 El Ninos reported since 1900, and all can be associated with reduced levels of SO2 aerosols
https://doi.org/10.30574/wjarr.2023.17.1.0124
“all can be associated with reduced levels of SO2 aerosols”
Out of control confirmation bias.
Looking at Fig. 3, and mentally extrapolating the sinusoid, strongly suggests that there should have been another set of warm waters about 2016, which there was.
It is difficult to believe that all the SO2 lows are going to occur at 18+ years if they are the result of human activities. If there is a correlation between SO2 and El Ninos, I think you need to explain why the SO2 should have that period, especially when humans influence it.
Pingback: ≫ El gran El Niño de 2015 se predijo con años de anticipación utilizando un ciclo lunar
Thanks, Javier, interesting. You say:
I was able to reproduce the authors’ findings regarding the January SSTs at Scripps Pier. And a CEEMD analysis shows the strongest cycle in Scripps Pier SSTs at 18+ years. So that much is confirmed. Can’t remember if this site allows inline images, if not, click the link.
https://rosebyanyothernameblog.files.wordpress.com/2023/07/lunar-k1-scripps-sst-el-nino.png
However, there is no 18.6 year cycle visible in CEEMD analyses of the Multivariate ENSO Index, the NINO3.4 Index, the Southern Oscillation Index, or the ENSO index. And when we add the dates of actual El Ninos to your Figure 3, it’s obvious that there’s no connection between the lunar nodal cycle and El Ninos … sorry, but the data doesn’t lie …
w.
You missed the point. There shouldn’t be a correspondence between the lunar cycle and ENSO, and the authors say it.
“It is clear that one cannot attribute the cause of El Niños to the moon because some (e.g. 1972/73, 1982/83) are not in phase with the LNC but it might be instructive to explore their differences to resolve the nature of the lunar signal in the El Niño data that was first described by Cerveny and Schaffer [2001].”
ENSO is not caused by lunisolar tidal forcing. But this does not mean tidal forcing has no effect on El Niño. What the data supports is that tidal forcing alters the odds and magnitude of El Niño by affecting water temperature.
Other factors also affect ENSO. I already showed in a series of articles that the solar cycle also affects ENSO. Obviously, the conditions in the Pacific are the most determinant, as the PDO determines ENSO frequency.
So it is not a question of finding if ENSO is caused by the Moon. We already know it is not. The question is to find if the Moon has an effect on ENSO, and the evidence supports it does. So much so that the lunar cycle allowed these researchers to predict a strong El Niño 8 years in advance. Nobody has been able to do that before.
Thanks, Javier. There’s a strong 18.6-year cycle clearly visible in a CEEMD analysis of the Scripps Pier data.
There is no such cycle in the NINO3.4, MEI, SOI, ONI, or ENSO indices. But if “the Moon has an effect on ENSO” as you say, there should be at least a weak 18.6-year signal in at least one of the various indices that track El Nino.
However … there’s no such signal in any of the indices.
Best regards,
w.
“there should be at least a weak 18.6-year signal in at least one of the various indices that track El Nino.”
That is an assumption of yours. Not finding something does not prove it doesn’t exist. It only proves it cannot be found with that method. The bibliography on lunisolar tidal effects on ENSO is extense, so scientists using more sophisticated methods than yours are capable of finding what you can’t from your limited understanding of a complex phenomenon.
As an example:
Switch Between El Nino and La Nina is Caused by Subsurface Ocean Waves Likely Driven by Lunar Tidal Forcing
https://www.nature.com/articles/s41598-019-49678-w
In the supplemental information they show the 6-year component of lunar tidal gravitational forcing on Earth’s angular momentum coincides with the 6-year component in ENSO.
Definitely the subsurface wave determines the switch from La Niña to El Niño.
http://www.bom.gov.au/cgi-bin/oceanography/wrap_ocean_analysis.pl?id=IDYOC007&year=2023&month=07
http://www.bom.gov.au/cgi-bin/oceanography/wrap_ocean_analysis.pl?id=IDYOC007&year=2023&month=05
Willis,
Do I remember correctly that about 5 years ago you noted on WUWT that some/most El Ninos that you studied commenced in a particular month like November? If so, is this another factor for testing predictions?
Geoff S
Here we are
Novembers from Willis.
https://wattsupwiththat.com/2020/11/08/boy-child-girl-child/

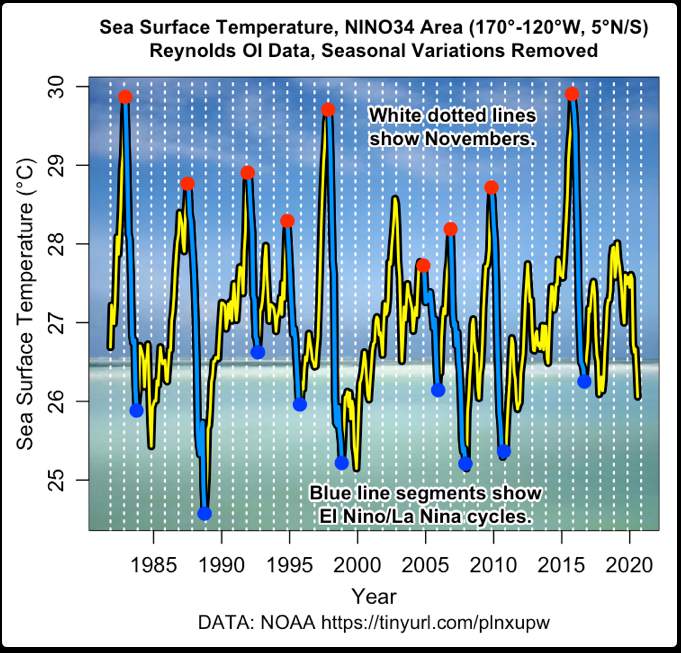

The dotted vertical grey lines are Novembers on this graph:
