Arctic winter sea ice puzzle

by Judith Curry

Arctic sea ice extent has been anomalously low this winter.

A time series plot from NSIDC:

Slide1

The spatial distribution of the anomaly from NSIDC:

http://nsidc.org/data/seaice_index/images/daily_images/N_bm_extent_hires.png

The greatest anomalies are in the European sector, specifically in the Barents Sea

To what extent are the anomalies associated with warm temperatures?  From the DMI surface temperature plot, north of 80N (from ECMWF reanalysis):

Slide1The global picture of sea surface temperature from OISST:

Slide2

So, what might be causing this particular anomaly?   Some possibilities are:

  • global warming (January 2016 was warmest Jan on record, according to the surface temperature analyses
  • multidecadal oscillations (e.g. stadium wave) predicts ice recovery to be occurring in the same region (European Arctic) where we see the sea ice decline).
  • seasonal weather circulation patterns – this has been a year with with unusual weather patterns, with both low temperature and high temperature records being set.

New paper by Goss et al.

A very interesting series of papers by a team at Penn State has come to my attention, here is the latest:

Stationary Wave Interference and Its Relation to Tropical Convection and Arctic Warming

Michael Goss, Stephen Feldstein, Sukyoung Lee

The interference between transient eddies and climatological stationary eddies in the Northern Hemisphere is investigated. The amplitude and sign of the interference is represented by the stationary wave index (SWI), which is calculated by projecting the daily 300-hPa streamfunction anomaly field onto the 300-hPa climatological stationary wave. ERA-Interim data for the years 1979 to 2013 are used. The amplitude of the interference peaks during boreal winter. The evolution of outgoing longwave radiation, Arctic temperature, 300-hPa streamfunction, 10-hPa zonal wind, Arctic sea ice concentration, and the Arctic Oscillation (AO) index are examined for days of large SWI values during the winter.

Constructive interference during winter tends to occur about one week after enhanced warm pool convection and is followed by an increase in Arctic surface air temperature along with a reduction of sea ice in the Barents and Kara Seas. The warming of the Arctic does occur without prior warm pool convection, but it is enhanced and prolonged when constructive interference occurs in concert with enhanced warm pool convection. This is followed two weeks later by a weakening of the stratospheric polar vortex and a decline of the AO. All of these associations are reversed in the case of destructive interference. Potential climate change implications are briefly discussed.

Published in Journal of Climate [abstract] [full manuscript]

I didn’t do the data analysis to see if their ideas holds up for the current sea ice blip in the Arctic, but this is clearly an interesting idea that I haven’t come across before.

Here are several other relevant papers that I’ve spotted from this group:

Attribution of the recent winter sea ice decline over the Atlantic sector of the Arctic Ocean.  Punchline: These findings suggest that most of the winter sea ice concentration trends can be attributed to changes in the large-scale atmospheric circulations.

A theory for polar amplification from a general circulation perspective.  Punchline:  this theory invokes that La-Niña-like tropical heating can help tap available potential energy and warm the Arctic by exciting poleward and upward propagating Rossby waves.

JC reflections

There are 3 factors in play regarding Arctic sea ice variations:

  • secular global warming trend
  • multidecadal variability associated with large-scale ocean oscillations
  • subseasonal weather variations associated with with weather regimes such as the MJO, AO, etc.

The amplitude of the subseasonal variations in sea ice is greater than the amplitude associated with multidecadal ocean oscillations and secular warming trend, hence invariably it is weather that is responsible for an individual blip (that may contribute to a record in sea ice extent).  The sea ice data set is inadequate for sorting out the secular global warming trend from the multi-decadal variability.

The Penn State team is making important contributions to unraveling this, in presenting some ideas that challenge ‘alarmist wisdom’ about the Arctic sea ice decline.  I look forward to following their work.













320 responses to “Arctic winter sea ice puzzle

  1. I always know what is inside a wrapped Christmas or birthday present. It’s a puzzle!
    ========

  2. There were negative AO episodes just where the sea ice extent had relative reductions from the start of January, and from the second week of February.

    “The sea ice data set is inadequate for sorting out the secular global warming trend from the multi-decadal variability.”

    I don’t see the problem, negative AO and especially negative NAO increased from the mid 1990’s, and drove the warming of the AMO and Arctic. The warm AMO is then driving further surface warming by drying continental interiors, and by lowering atmospheric water vapour altitude globally. Increased forcing of the climate increases positive AO/NAO, so some other forcing is declining and overwhelming the increase in CO2 forcing, else negative AO/NAO would have not increased. There is only one possible culprit:
    http://snag.gy/PrMAr.jpg

    • Who you gonna believe? Me, or your lyin’ ice?
      ===================

      • VTG

        The descriptions that you use and support are laughable. The use of the term “climate risk deniers” shows the stupidity of your position.

        Of course there are risks that the climate will change negatively in any location around the world. This has always been true. You have no even reasonably reliable information to tell whether the climate in any particular location will be changing in a positive of negative manner.

        You are a “climate risk denier!” The only means to reliably reduce the risk of the negative consequences of adverse weather or climate change is the construction and maintenance of robust infrastructure. How does it make sense to any sensible person to spend limited financial resources on mitigating CO2 vs. building and maintaining infrastructure???

    • Judith might have missed that the DMI 30 % ice coverage graph showed 10-year-high just before it was adjusted and discontinued. A puzzle indeed.

      • i spotted this, no idea what to make of it

      • no idea what to make of it

        Really?

        “Sceptics” hint at nefarious deeds by reputable organisation, and you don’t know what to make of it?

        http://neven1.typepad.com/blog/2016/02/grasping-at-uncorrected-straws.html

      • Running a blog which not merely tolerates but encourages such conspiracy ideation does you no credit.

      • The new MO of alarmists seems to have become the cry of conspiracy ideation every time some questions their claim, points out curious event like the one with the DMI, or as much as disagrees with them. Dramagreens indeed.

      • Pethefin,

        yes, I do realise that having your insuations of conspiracy pointed out is inconvenient to you.

      • Verylowguy, the only person claiming conspiracies is you. Do you have anything intelligent to provide for this thread?

      • Pethefin,

        if you’re going to be a conspiracist, at least own your own words rather than try to wheedle out of your insinuations.

        “Other measures are high”
        “your lyin ice”
        “10-year-high just before it was adjusted and discontinued. A puzzle indeed.”

        Purleeze. Have some self respect.

      • Do you for example have an explanation to the contradicting views of the DMI in that while they define open water in the following manner:
        “The number of days of open waters for a given point is defined as the interval between the sea ice concentration falling from greater than 30% to less than, and remaining so for at least 5 days, until the ice concentration again climbs to above 30%, and stays so for at least 5 days”
        see http://ocean.dmi.dk/arctic/climatology_v2/frzbrkowd_mean.uk.php
        They at the same time now say that we should follow 15 % ice coverage as the measure of sea-ice. Which is it? Open water or sea-ice?

      • Verylowguy, once you started lying it became clear what you stand for. Only the last citation was from my comments, you fool. And for that comment there’s plentiful documentation if you really claim that I was wrong?

      • Pethefin,

        I thought it was obvious from the context in the thread, but yes, for absolute clarity, only the last quote is from you – the other two are previous conspiracy supporting posts immediately before yours which you built on.

        On the definition of open water, I have no opinion. Other than it isn’t a bizarre conspiracy to hide the troof.

      • Utterlowguy, you truly are a piece of work.

      • Perhaps that is is cold around the pole, enlarging the 30% ice coverage while warm around the fringes, decreasing the 15% ice coverage

      • Perhaps the 30% graph has been discontinued and shouldn’t be used anymore, as anyone can see if they ask themselves what color is the 2016 line.

      • DHR,

        read neven’s linked post. There is no puzzle, the 30% data just wasn’t correct because DMI had decided to discontinue that series and didn’t maintain the plot.

        The only puzzle is why Judith encourages these bizarre conspiracy theories.

      • Pethefin,

        Don’t waste time on vtg. He comes around to throw rocks. By throwing out terms like conspiracy ideation, he likes to believe he is a very smart hurler.

        He’s not.

      • verytallguy: “Sceptics” hint at nefarious deeds by reputable organisation, and you don’t know what to make of it?

        Me neither. It’s probably just a coincidence. According to statistician Frederick Mosteller, coincidences are much more common than seems reasonable naively. As explained, the data are still available.

      • conspiracy theory: An explanatory or speculative hypothesis suggesting that two or more persons or an organization have conspired to cause or to cover up, through secret planning and deliberate action, an event or situation typically regarded as illegal or harmful.

        conspiracy ideation: What a conspirator yells when you’ve caught them at it, REPEATEDLY, yet they still expect their actions and motives to be treated as honorable and above question. See ‘prat’

      • The Politics of Conspiracy Theory

      • Schitz,

        Well, I can only commend your honesty in at least openly saying you believe it’s a conspiracy.

        Ten out of ten for truthfulness, rather lower marks for credibility unfortunately.

      • David Springer

        One might wonder why the 30% graph was pulled instead of the 15% graph, eh? LOL

      • David Springer

        One might wonder why the 30% graph was pulled instead of the 15% graph, eh? LOL

      • DHR | February 23, 2016 at 12:29 pm |

        “Perhaps that is is cold around the pole, enlarging the 30% ice coverage while warm around the fringes, decreasing the 15% ice coverage.”

        Well, at least one person actually tried to come up with a reason, instead of tossing up red herrings. I was thinking maybe winds were compacting the ice, making it more concentrated while decreasing the extent of loose ice. The net change would be very uncertain.

        Will be interesting to see what happens in summer. More tightly packed ice at higher latitude should melt slower, wouldn’t you think?

        kim | February 23, 2016 at 6:37 am |

        “Who you gonna believe? Me, or your lyin’ ice?”

        LOL

      • Bartemis,

        there is no”reason” to come up with. The graph was wrong because it wasn’t maintained. Check the raw data…

        Dave, yeah, it’s conspiracy all the way up, I know…

      • Bartemis,

        there are some strange beliefs held around here, but I’m not sure I’ve ever seen a post quite so in direct contradiction of the facts.

        You claim that the maps you’ve posted show more coverage in 2016 (although you offer no quantification of this).

        Yet, visually, the 2016 graph has obviously *less* cover, directly contradicting your point.

        Look at Svalbard on the first graph. 2015, ice fast against the coast. 2016, in clear open water.

        Bizarre.

      • Bizarre, indeed. You may need to get your eyes checked. Perhaps you are wearing rose colored glasses, and missed the fact that the concentration is deeper, and the promontories wider, just about everywhere.

    • There are about three things to keep in mind as far as the low ice extent. One is that 15% may look different than 30%. The second is somewhat related. That is that one should also look at ice thickness. I believe it has been trending upward and is not as thin as in prior years. The third is that there may not be that strong of a relation between winter 15% extent and summer. 2011-2012 had very high 15% in winter and went on to have the lowest summer extent ever. Winter extent has only been decreasing at 2-3% per decade over last 35 years. Given the prevalence of apparent 60 year semi-cycles (irregular cycles), wait and see if the ice really does start to recover over the next decade.

    • No they aren’t Bartemis. For chapter & verse on the “DMIGate” story please see my interview with NASA’s Walt Meier:

      http://GreatWhiteCon.info/2016/02/dmi-masie-and-the-sea-ice-index-an-interview-with-walt-meier/

      Regarding DMI, the issue seems quite simple. The 30% plot is an older version that they stopped supporting as they transitioned to the 15% plot.

  3. Very interesting.

  4. I’ll take North Atlantic oscillation and reversal of normal Westerly wind flows for $25…

    • Agree, but also all that open water is warmer than ice, plus ice is an insulator, and there surface exchange, all leading to a lot more energy lost to space than is it was a larger extent.
      There’s only 4-6 hours a day when solar might put more energy than lost, but the rest of the time, far more is lost than gained.

  5. JC, I had been wondering your thoughts on the implications of the recent barentz/kara sea ice data for your stadium wave idea. I remember last year you were trying touse the past few years of piomas ‘data’ to suggest a start of a recovery. Clearly there is no such recent recovery on the european side, if anything things are still going in the opposite direction. So are you still happy with the Stadium wave, and are you still waiting for are ‘recovery’ on the european side?

    Thanks

    • The stadium wave is a short cycle in climate. I think it is the 60 year cycle.
      Most of what is happening to open the arctic ocean is the 1000 year cycle.
      Roman warm, cold, Medieval warm, Little Ice Age, warm again now.

  6. http://www.dmi.dk/fileadmin/Rapporter/SR/sr05-02.pdf
    The extent of ice in the North Atlantic varies in time with time scales stretching to centennial, and the cause of these variations is discussed. We consider the Koch ice index which describes the amount of ice sighted from Iceland, in the period 1150 to 1983 AD. This measure of ice extent is a non-linear and curtailed measure of the amount of ice in the Greenland Sea, but gives an overall view of the amounts of ice there through more than 800 years. [W]e find that the recently reported retreat of the ice in the Greenland Sea may be related to the termination of the so-called Little Ice Age in the early twentieth century. We also look at the approximately 80 year variability of the Koch [sea ice] index and compare it to the similar periodicity found in the solar cycle length, which is a measure of solar activity. A close correlation (R=0.67) of high significance (0.5 % probability of a chance occurrence) is found between the two patterns, suggesting a link from solar activity to the Arctic Ocean climate.

    https://www.jstage.jst.go.jp/article/sola/6A/SpecialEdition/6A_SpecialEdition_1/_pdf
    Since the decadal variation of the AO is recognized as the natural variability of the global atmosphere, it is shown that both of decadal variabilities before and after 1989 in the Arctic can be mostly explained by the natural variability of the AO not by the external response due to the human activity.

    http://journals.ametsoc.org/doi/abs/10.1175/JCLI-D-15-0301.1
    On the interannual time scale, ENSO and SAM are important, but a large fraction of sea ice variance can also be explained by Rossby wave–like structures in the Drake Passage region. After regressing out the sea ice extent variability associated with ENSO, the observed positive sea ice trends in Ross Sea and Indian Ocean during the satellite era become statistically insignificant. Regressing out SAM makes the sea ice trend in the Indian Ocean insignificant. Thus, the positive trends in sea ice in the Ross Sea and the Indian Ocean sectors may be explained by the variability and decadal trends of known interannual climate modes.

    • Interesting links. While reading the first paper the question rose as to whether different external forcings affect discrete parts of the globe.
      Also, whether strong correlations can be found are becoming less important to me than simply identifying evidence of large variability. Let future generations sharpen those relationships to a fine point.

  7. The Arctic ice comes and it goes. Post-Napoleonic period, 1920s, right now…less of the stuff. Late nineteenth century, 1970s…more.

    It’s a bit like the sea level thing and the temp thing: no sense in building on current trends. There’s always a current trend, but trends end. It’s true you are not living in your grandparents’ climate. What they leave out is that your grandparents were not living in their grandparents’ climate.

    Get ready for more or less, warmer or cooler, higher or lower. It’s called prudence, can’t be modelled, can’t be push-polled, can’t be fudged.

    And since so much science is modelling, push-polling and fudging these days…don’t go looking for a climate scientist with a good stock of prudence.

    Grow your own prudence. When you’ve got time and funds, dig an extra well…but dig an extra drain too.

  8. This low has been making the rounds as DMI shelve their 30% sea ice extent plot. NSIDC’s plot looks far mroe scary.

  9. The main ice deficit this year in the N Atlantic and Barrents Sea region. This winter there has been an astonishingly persistent warm SW flow across the N Atlantic into the Arctic and across W Europe and hence why W Europe is seeing one of the warmest winters for many years. This persistent SW flow was repeated previously in the last super El Nino in the winter of 97/98 where also strong warming SW wind flow persisted over the eastern N Atlantic and W Europe. I would say there is empirical evidence to suggest this persistent SW flow was related to the El Nino semi stationary convection in the Pacific, but with so few samples to choose from it is near impossible to be sure of the relationship.

  10. When oceans get warm, polar oceans thaw, this is a necessary and natural and wonderful event that is needed to provide snowfall to replenish ice on land. This happened during the Roman and Medieval warm periods, but we were not watching as closely. We do know the Vikings left Greenland because it started snowing too much. This will continue as did the Roman and Medieval warm periods continued, and then the replenished ice will advance and dump ice and ice cold water on land in into the oceans and start the next little ice age.

  11. The Arctic air has been hot for the last 4 years with increasing winter SIE 2 and 3 years ago but not last year.
    The air temperature does not seem to be an issue really, 9/10ths of the ice is underwater and the main cause for ice increase or decrease is the temperature of the adjacent water.
    Air currents and storms can compact thin ice reducing area for up to 10 days but it usually recovers.
    The DMI 30% recently removed was interesting in that it showed an increase where the 15% dipped.
    This raises the possibility that the data is being under interpreted as to ice thickness in the 15% algorithms, which all copy each other precisely.

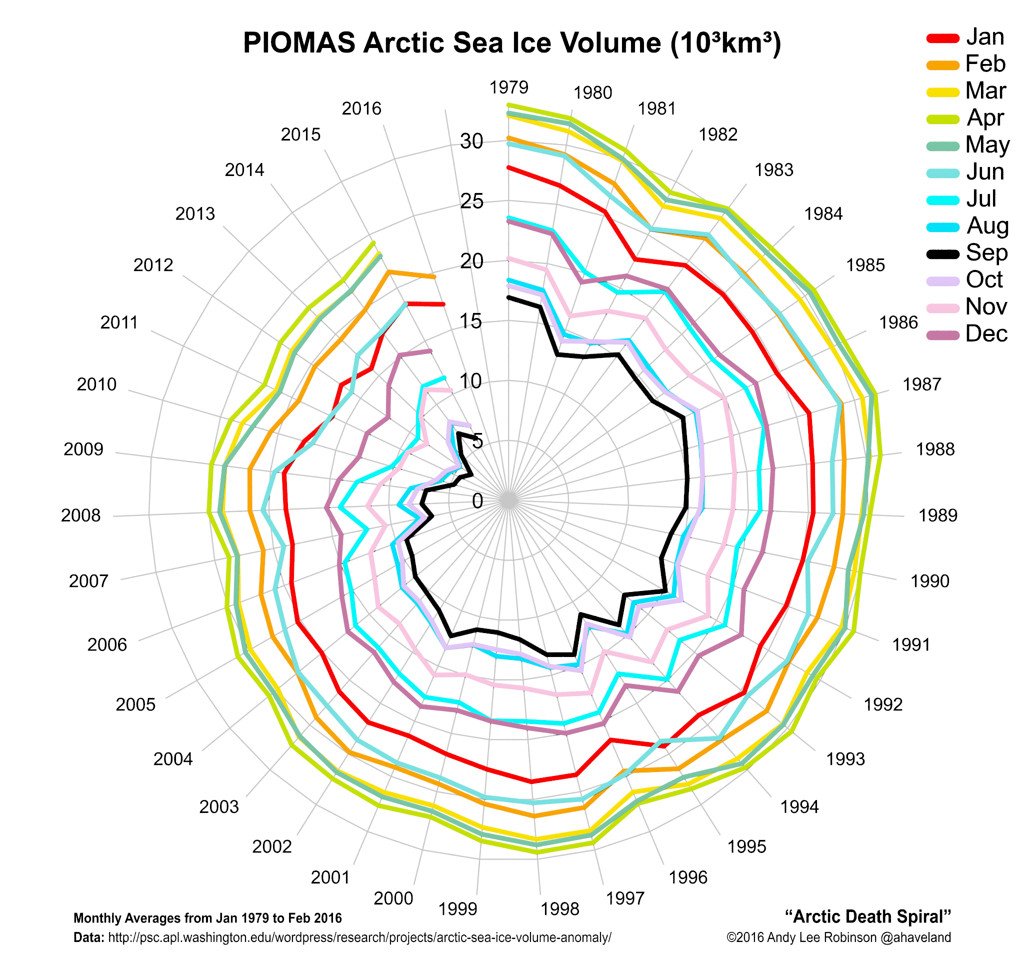

    The proof of this pudding may be in PIOMAS and other volume studies.
